ODE With Birth and Death Process

We follow on from the SIR model of Simple Problem but with additional birth and death processes.

\[\begin{split}\frac{dS}{dt} &= -\beta SI + B - \mu S\\ \frac{dI}{dt} &= \beta SI - \gamma I - \mu I\\ \frac{dR}{dt} &= \gamma I.\end{split}\]

which consists of two transitions and three birth and death process

Let’s define this in terms of ODEs, and unroll it back to the individual processes.

In [1]: from pygom import Transition, TransitionType, SimulateOde, common_models

In [2]: import matplotlib.pyplot as plt

In [3]: stateList = ['S', 'I', 'R']

In [4]: paramList = ['beta', 'gamma', 'B', 'mu']

In [5]: odeList = [
   ...:            Transition(origin='S',
   ...:                       equation='-beta*S*I + B - mu*S',
   ...:                       transition_type=TransitionType.ODE),
   ...:            Transition(origin='I',
   ...:                       equation='beta*S*I - gamma*I - mu*I',
   ...:                       transition_type=TransitionType.ODE),
   ...:            Transition(origin='R',
   ...:                       equation='gamma*I',
   ...:                       transition_type=TransitionType.ODE)
   ...:            ]
   ...:

In [6]: ode = SimulateOde(stateList, paramList, ode=odeList)

In [7]: ode2 = ode.get_unrolled_obj()

In [8]: f = plt.figure()

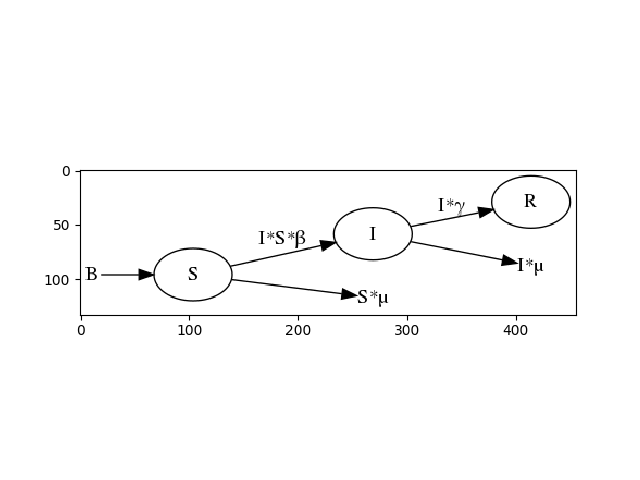

In [9]: ode2.get_transition_graph()
Out[9]: <graphviz.dot.Digraph at 0x7f75674942e8>

In [10]: plt.close()
